Key Takeaways About EV Charger Installation

EV charger installation covers circuit sizing, breakers, permitting, load management, and placement for safe Level 2 charging. This guide is for homeowners and property managers planning installation or troubleshooting when charging causes trips or appliance interaction.

  • Identify the charger continuous current and nameplate rating first.
  • Prevent overloads by using a dedicated breaker and proper wiring.
  • Avoid code issues by obtaining permits and preparing panel diagrams.
  • Spot warning signs like heat smell or frequent breaker trips quickly.
  • Reduce service stress with load management or timed charging schedules.
  • Plan charger placement to minimize run length and protect from moisture.

Introduction

Installing a Level 2 EV charger can strain a home electrical system when the circuit and panel are not sized correctly. Homeowners often notice slow charging, tripped breakers, or flickering lights when an EV charger draws significant power. Those issues matter because improper setup can create safety risks and reduce charger reliability. In Myrtle Beach, SC properties with older panels these problems surface more often during peak evening usage.

A dedicated breaker and properly sized circuit keep the charger isolated from other household loads and reduce nuisance trips. Electricians will check wire gauge, breaker type, and panel capacity to match the charger’s continuous current rating. Proper placement of the charger also affects cable length, weather exposure, and accessibility for maintenance. For homes in Conway, SC the same placement choices influence local permitting and inspection timing.

Load management plays a big role when homes already use multiple high-draw appliances like heat pumps, electric ovens, or well pumps. Smart load controls and panel load calculations help prevent overloads and can avoid costly panel upgrades in some cases. Permitting and inspection confirm the work meets safety standards and protect homeowners from future compliance issues. If you see warm outlets or recurring trips, contact a licensed electrician for a professional diagnosis.

A professional will diagnose charger problems by observing symptoms, taking voltage readings, and inspecting breakers, grounding, and junction boxes. They may perform a panel load calculation and test the charger on its rated current to confirm proper operation. Photographs, written reports, and meter readings document findings and guide corrective steps. These checks give homeowners a clear path to safe and reliable Level 2 charging at home.

Understanding Circuit Sizing for Level 2 Chargers

Circuit sizing for Level 2 EV charger installation means matching wire, breaker, and panel capacity to the charger's continuous current. A properly sized circuit prevents nuisance trips and reduces fire risk when charging overnight. Homeowners often ask whether a 240V, 40A circuit is enough for a specific EV, and the answer depends on the charger's continuous current rating. A licensed electrician reads the charger's nameplate and uses that rating to size the circuit correctly.

  • Match wire gauge to breaker amperage.
  • Size breaker for continuous load rules.
  • Consider voltage drop for long runs.
  • Keep the charger on its own circuit.
  • Confirm grounding and GFCI or AFCI protection.

Wire gauge selection depends on the breaker size and run length to the garage or carport. Electricians check for voltage drop when runs exceed typical distances and upsizing may be necessary. Inspectors expect conductors sized for continuous loads and breakers that accommodate 125 percent of the charger's continuous current. For homeowners in Myrtle Beach, SC, salt air can affect outdoor conduit and connections over time.

Panel capacity matters when adding a new high-draw circuit for charging an EV at home. A professional performs a load calculation to confirm available capacity and whether panel upgrades or load management are needed. In Conway, SC homes with many existing large appliances, load calculations often reveal the need to shift or manage loads. If you see repeated breaker trips or dimming lights while charging, ask an electrician to test voltage and panel bus temperature.

Photo from iStock - Credit: Yu Sun

Calculating Load and How It Works for Panels

Start by calculating the charger's continuous current and then multiply by 125 percent to determine required breaker sizing for sustained loads. A professional reads the charger's nameplate amperage and confirms circuit ampacity matches that adjusted value. They also consider run length and conductor temperature rating to prevent overheating under continuous draw. This step ensures the breaker trips only on true faults, not normal charging current.

Next, electricians perform a panel load calculation to see how the new circuit fits with existing circuits and major appliances. They tally nameplate currents for HVAC, electric ranges, water heaters, and other continuous loads to find available capacity. If the math shows the panel operating near its limit, options include load shedding, subpanel addition, or a service upgrade. The calculation uses measured readings when possible to avoid relying solely on nameplate values.

Diagnostic checks include measuring voltage under load and checking bus temperature near the main breaker and branch breakers with a noncontact thermometer. A pro will also inspect the service neutral, grounding conductor, and any shared neutrals for signs of overheating or looseness. They may perform a simple clamp meter reading on the incoming conductors while the EV charges to confirm actual current draw. These tests reveal whether the panel can sustain continuous charging without nuisance trips or unsafe heating.

In some homes, managed charging systems let owners use the existing service without an upgrade by shifting loads during charging times. Load management ties into panel calculations because it changes which circuits draw power simultaneously and by how much. For properties in Myrtle Beach, SC or in Conway, SC this approach can delay a costly service upgrade while keeping the installation safe and code compliant. After diagnostics, the electrician documents meter readings and recommendations in a written report for permits or future reference.

Dedicated Breakers Importance and When to Install

A dedicated breaker isolates the charger from other circuits and reduces the chance of nuisance trips during long charging sessions. Electricians choose breaker types that match the circuit configuration and provide required overcurrent protection for continuous loads. During an inspection a pro verifies breaker trip curves and tight connections to avoid heat buildup at the lug. If breakers show discoloration or loose terminals, replacement and retorqueing are typical corrective steps.

Install timing depends on panel space and service capacity rather than the charger model alone, so plan the breaker when scheduling the EV charger installation. An electrician inspects the panel interior for spare spaces, correct bus ratings, and possible need for a subpanel to keep circuits separated. They will also check for correct breaker type, such as standard thermal-magnetic devices compatible with the panel bus. If the panel uses tandem breakers, a dedicated full-size slot may be required for safe installation.

Proper grounding and appropriate neutrals form part of the breaker installation checklist, especially if the charger includes control or communication wiring. A technician uses a continuity test and voltage readings to confirm grounding conductor integrity and proper bonding to the panel chassis. They examine the junction box, conduit transitions, and connection torque to prevent arcing under load. If readings show unexpected resistance, the pro documents the issue and corrects the grounding path before energizing the circuit.

When multiple high-demand devices run in one service, coordinated breaker selection and load scheduling help prevent service overloads without immediate panel upgrades. An electrician may recommend a managed charging solution tied to the panel or a demand-response relay to shift loads automatically. For homeowners in Myrtle Beach, SC and those in Conway, SC, adding a dedicated breaker during the initial install avoids extra trips and speeds up permit approval. Ask for a written checklist and measured readings as proof of compliance when the work is complete.

Permitting Requirements and What Inspectors Check

Permits for EV charger installation usually require a submitted electrical permit and a clear diagram of the new circuit layout. Inspectors review the breaker size, conductor ampacity, and cable routing to confirm compliance with continuous load rules. Expect the inspector to check labeling at the panel and whether the circuit has a permanent mounting and weatherproofing for outdoor equipment. Prepare photos and the charger's nameplate information to speed permit review and field inspection.

  • Panel labeling is required.
  • Breaker and wire sizes must match.
  • Conduit and cable support need inspection.
  • Grounding and bonding are verified.
  • GFCI or AFCI protection is checked when required.

During the site visit, inspectors look for safe clearances around the panel and accessible breaker spaces for future work. They will confirm the charger mounting follows manufacturer spacing and mounting instructions in plain view. You should expect the inspector to test the circuit for proper voltage and to visually inspect connections for overheating signs. A professional electrician can witness the inspection and provide required documentation to the inspector.

Inspectors may also require a final functional test of the charger while monitoring breaker behavior under load. They observe for nuisance tripping, unexpected voltage drop, and proper grounding connection during a short charging session. If issues appear, the inspector typically documents deficiencies that must be corrected before final approval. Scheduling repairs promptly helps avoid permit delays and repeated inspections.

Homeowners in Myrtle Beach, SC should note permit turnaround times can affect project scheduling and inspection windows. For properties in Conway, SC, have the panel schedule and photos handy for faster reviewer decisions. Professionals diagnose permit-related failures by checking connection torque, taking voltage readings, and photographing the installation for the inspector. After corrections, the electrician submits proof of fixes and requests reinspection to close the permit.

Load Management Strategies and When to Upgrade

Start by grouping circuits to reduce simultaneous demand and prevent the main service from hitting its limit during peak hours. A professional installs a load-shedding relay or smart energy management module to sequence high-draw appliances and the EV charger. These devices monitor panel current and temporarily reduce or pause noncritical loads when the charger starts drawing heavy current. Owners notice this as a brief delay in appliance cycles or staged charging rather than frequent breaker trips.

Time-of-use scheduling also reduces strain by shifting charging to low-demand periods when household loads drop. Many chargers and home energy systems allow charging windows and rate-based triggers to begin charging at night. An electrician configures the charger to work with load management hardware and verifies settings with live meter readings. Metered testing shows whether the strategy keeps total service load under the rated capacity during a full charge.

When panel capacity is insufficient despite management, consider a service upgrade or adding a subpanel to supply dedicated circuits for large loads. A pro will perform a new load calculation using measured currents from appliances and the charger during typical operation. They check service entrance ratings, main breaker size, and available bus spaces to determine upgrade need. For homeowners in Myrtle Beach, SC this decision often balances equipment cost against long-term household electrification plans.

Managed charging can delay an upgrade, but upgrades become necessary when simultaneous loads regularly exceed safe limits or when future electrification is planned. Electricians confirm upgrade need by recording clamp meter readings during peak usage and reviewing voltage stability under load. In Conway, SC properties with multiple high-demand appliances, recorded readings often guide whether a simple load manager suffices or a full service upgrade is safer. Documented test results and a written recommendation help homeowners decide the best path forward.

Best Placement Tips for Safe Charger Operation

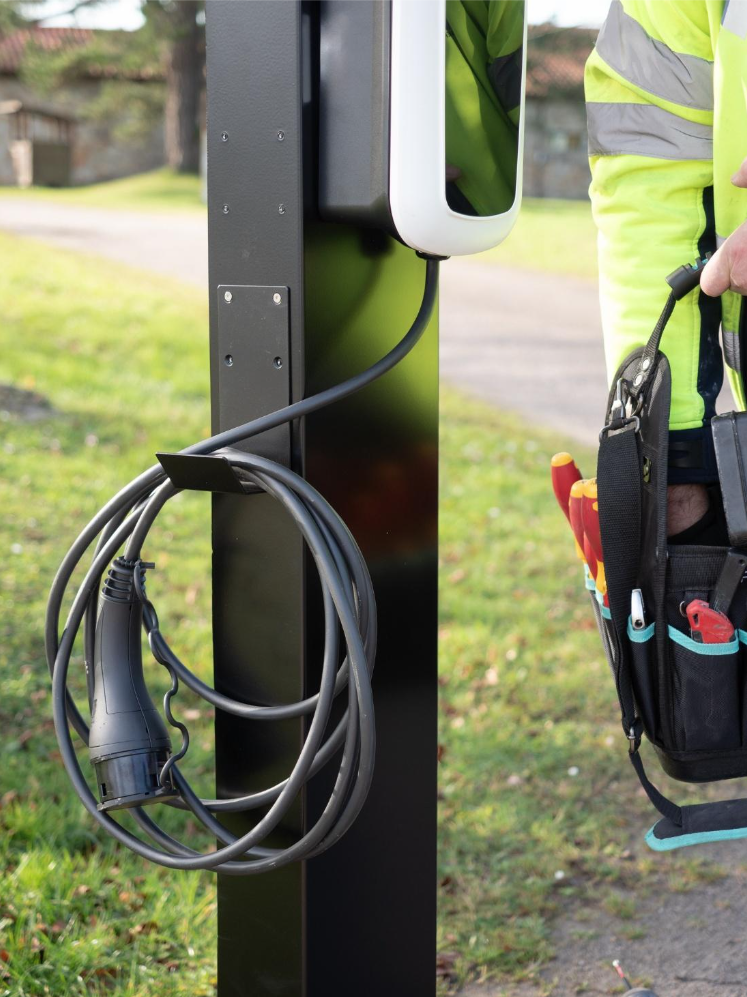

Place the charging unit where the plug reaches the vehicle comfortably without stretching the cable, reducing wear on the cord and inlet. Position the mount so the connector hangs at a convenient height and does not rest on the pavement to avoid grit or moisture damage. Keep the charger away from mower storage, gasoline cans, or corrosive chemicals to prevent accidental damage during routine yard work. If the location will be exposed, choose an area with a solid mounting surface and easy access for future maintenance.

Plan the route for conduit and wiring to minimize sharp bends and long runs that increase voltage drop and heat buildup. A shorter run reduces the need to upsize conductors, which saves space inside the panel and lowers installation complexity. Protect exterior conduit runs from physical damage by placing them under eaves or behind barriers where possible to limit impact and sun exposure. During installation, an electrician checks conduit fill and uses junction boxes at accessible locations for future inspections and repairs.

Avoid mounting the charger directly above areas that collect standing water or under active drip lines to prevent moisture intrusion into connectors and junctions. Provide at least a small weather shield or rated enclosure if mounting under light exposure to reduce direct spray during storms. For homes in Myrtle Beach, SC consider salt air when choosing metal mounting hardware and fasteners that resist corrosion over time. The installer examines the enclosure seals and grounding continuity during the final checks to ensure safe operation.

Keep the panel and charging equipment reachable with clear working space for maintenance and inspections to reduce technician time and risk during troubleshooting. Leave room for future upgrades like a subpanel or load management hardware so expansion does not require relocating the charger. In Conway, SC properties plan placement with permit access in mind so inspectors can reach the equipment without obstructions. A professional will test the installed location with a clamp meter and visual inspection to confirm proper voltage, heat, and grounding before final signoff.

Signs Of Trouble and When to Call a Professional

Watch for heat at the charger housing, breaker, or outlet as a clear sign something needs inspection by a pro. Strange smells like burning plastic or hot insulation near the panel or charger indicate an immediate safety concern and warrant shutting off the circuit. Repeated tripping during normal charging suggests incorrect breaker sizing, loose connections, or a failing breaker that a licensed electrician in Conway, SC should test. If you notice unusual timing in charge completion or inconsistent state-of-charge reports, have the charger and vehicle communication checked professionally.

  • Unusual heat around connections.
  • Burning or chemical smells near equipment.
  • Frequent breaker trips while charging.
  • Visible corrosion on terminals.
  • Intermittent power or error lights.

Visible corrosion on terminals or conduit fittings can reduce conductor contact quality and create overheating risks, especially near coastal areas like Myrtle Beach, SC. A technician inspects for loose lugs, measures voltage drop under charge, and performs a continuity test on grounding conductors to confirm safe paths. They also open junction boxes to look for discoloration, melted insulation, or arcing marks that indicate high resistance points needing repair. Photographs and written meter readings document the condition and guide corrective actions for safe operation.

When charging causes household lights to dim or appliances to cycle oddly, an electrician conducts a clamp meter survey during a full charge session to measure simultaneous currents. They may perform a panel bus temperature scan and check main breaker torque to detect thermal buildup that ordinary observation misses. If load calculations show insufficient headroom, the pro explains options like managed charging or panel upgrades with measured examples. For properties in Conway, SC homeowners should collect symptoms and operating times before the visit to speed accurate diagnosis.

EV Charger Installation Costs Timing and Preparation

Plan the timing of an EV charger installation around permit turnaround and electrician availability to avoid project delays. Schedule the electrician after permit approval to prevent rework caused by inspector change requests. Expect the field work to take a few hours for a simple circuit and longer if a subpanel or trenching is required. Communicate planned vehicle charging times so the installer can test under realistic load conditions during the visit.

Before the crew arrives, clear access to the main panel and intended charger location to speed the job and reduce labor time. Remove stored items and ensure parking space is available for vehicle testing during commissioning. Have the charger's nameplate and installation manual ready for the electrician to confirm circuit requirements on site. Photograph existing panel labels and any older equipment that might need replacement to help the installer prepare parts ahead of time.

Understand cost factors that affect scheduling, such as run length, conduit routing, and panel work that may extend the timeline and require extra permits. If the installer anticipates a service upgrade or new conduit trench, expect additional days for inspections and municipal approvals. Ask the electrician for a written timeline and milestones so you know when permits, rough wiring, and final inspection will occur. Keep in mind local permit offices can influence start dates, especially during busy seasons in Myrtle Beach, SC.

Prepare for the final inspection by being available or leaving clear access and documented photos of completed work for the inspector. A professional will perform voltage and clamp meter checks during commissioning to confirm proper wiring and safe breaker behavior. If the inspector requests corrections, schedule the fixes promptly to avoid prolonged permit closure and extra inspections. For properties in Conway, SC, coordinate the reinspection window with the electrician to complete signoff efficiently.
